Auster J/5 Family

Including J/5 and J/5A; J/5B, J/5E, J/5P and J/5V Autocar; J/5F, J/5K, J/5L, J/8F and J/8L Aiglet Trainer;

J/5G and J/5H Cirrus Autocar; J/5Q and J/5R Alpine; J/5T

<< Return to Auster

For a description of the format and data included in Production Tables, see here.

The J/5 was the fifth sub series developed from the original Model J. The J/8 followed the unbuilt J/6 and J/7 projects.

Contents

Type Description
The J/5 Family

Type Description

  • J/5 (Adventurer)
  • Three/four seat touring monoplane. As the J/1 Autocrat but fitted with 130 h.p. de Havilland Gipsy Major 1 powerplant and featuring a sloping engine firewall to provide space for a starter. Developed via a request from Kingsford Smith Aviation Services, to utilise large existing stocks of Gipsy Major powerplants in Australia, the initial modifications were confined to the shock truss and area forward of the cockpit resulting in modified cowlings. The first aircraft, a conversion of a standard J/1 airframe, was made under Auster Mod No.1442 and was designated the J/5A.
    Subsequent production aircraft were produced under Auster Mod No.1527 and designated J/5. The main differences over the original J/5A were a strengthened fuselage, the use of the Auster 6 type undercarriage, new shock cords, improved fuel lines to give better clearances off engine accessories, improved breather pipe and an improved fuel tank construction to prevent bowing.
    In Australia, the J/5 was initially known as the J/5 Autocrat but circa March/April 1949 the name Adventurer was sprayed on VH-KAD and VH-KSY. This was followed by the gradual disappearance of the name Autocrat as applied to a J/5. No other customer named this Model which was always just J/5 outside of Australia.
    Auster Mod No.1727 dated 4 February 1949 increased the number of seats from three to four with a rear bench seat, but there was no change to the designation. [5]
  • J/5B Autocar
  • 4 seat tourer based on the J/5 with a wider rear cabin to accommodate the pilot and three passengers, wing root fuel tanks and a more rounded dorsal fuselage shape achieved by using wooden formers and stringers, along with a larger fin and larger, horn balanced, rudder. 130 h.p. de Havilland Gipsy Major 1 powerplant.

J/5B Autocar Specification
Span Length Height Wing Area Empty Wt Max AUW Cruise Speed Maximum Speed Range Service Ceiling
36 ft 23 ft 2 in 6 ft 8 in 185 sq ft 1413 lb 2400 lb 105 mph/ 91 kn 116 mph/ 101 kn 260 mi 13000 ft
10.97 m 7.06 m 2.03 m 17.19 m2 641 kg 1089 kg 169 km/h 187 km/h 418 km 3962 m

  • J/5E Autocar
  • Three seat racing version of the J/5B with reduced wing span of 30 ft. 5 in. and fitted with 155 h.p. Blackburn Cirrus Major 3 powerplant.
  • J/5F Aiglet Trainer
  • Fully aerobatic variant of J/5 with a reduced wing span of 32 ft, wing root fuel tanks and new, reduced span, wide chord ailerons with revised controls utilising ball-race pulleys in the circuit to reduce static friction. 130 h.p. de Havilland Gipsy Major 1 powerplant.

J/5F Aiglet Trainer Specification
Span Length Height Wing Area Empty Wt Max AUW Cruise Speed Maximum Speed Range Service Ceiling
32 ft 23 ft 6 in 6 ft 8 in 164 sq ft 1323 lb 1950 lb 110 mph/ 96 kn 127 mph/ 110 kn 275 mi
9.75 m 7.16 m 2.03 m 15.24 m2 600 kg 885 kg 177 km/h 204 km/h 443 km

  • J/5G Cirrus Autocar
  • J/5B Autocar fitted with a 155 h.p. Blackburn Cirrus Major 3 powerplant.
  • J/5H
  • One J/5B Autocar, c/n 2947, converted by by Kingsford Smith Aviation Services in 1956/7 and fitted with 145 h.p. Blackburn Cirrus Major 2 powerplant.
  • J/5K Aiglet Trainer
  • J/5F fitted with 155 h.p. Blackburn Cirrus Major 3 powerplant.
  • J/5L Aiglet Trainer
  • J/5F fitted with 145 h.p. de Havilland Gipsy Major 10 Mk.1-3 or Mk.2-1 powerplant.
  • J/5P Autocar
  • J/5B fitted with 145 h.p. de Havilland Gipsy Major 10 Mk.1-3 or Mk.2-1 powerplant.
  • J/5Q Alpine
  • J/5F fuselage and tail unit combined with J/5B wings, but featuring the wide chord ailerons and revised controls of the Aiglet Trainer, but of 24" longer span. 130 h.p. de Havilland Gipsy Major 1 powerplant.
  • J/5R Alpine
  • J/5Q fitted with 145 h.p. de Havilland Gipsy Major 10 Mk.2-1 powerplant.
  • J/5T
  • J/5B fitted with 205 h.p. Continental 185-10 powerplant to Auster Mod No.3271. Used flight tests prior to the Model C.6 Atlantic.
  • J/5V
  • J/5B fitted with 160 h.p. Lycoming O-320-B2B powerplant.
  • J/8F Aiglet Trainer
  • J/5F with central flap lever.
  • J/8F Aiglet Trainer
  • J/5F with central flap lever.
  • J/8L Aiglet Trainer
  • J/5L with central flap lever.

Non-Auster Produced J/5 Variants

  • Kingsford Smith
    Super Autocar
  • One J/5G Cirrus Autocar, c/n 2981, converted by Kingsford Smith Aviation Services in 1954 and fitted with a 225 h.p. Continental O-470 powerplant, a constant-speed propeller, larger wheels, hydraulic brakes and other changes to suit it for agricultural work.
  • Kingsford Smith
    Bushmaster
  • Also apparently identified as a J5-6, one J/5G Cirrus Autocar, c/n 3189, was converted by Kingsford Smith subsidiary Austerserve Pty Ltd and fitted in 1959/60 with 180 hp Lycoming O-360 engine driving a Hartzell constant-speed propeller, new instrumentation, more comfortable seating, extra sound proofing, a radio, and Goodyear hydraulic brakes.
  • J/5-190 Ag-Special
  • One J/5 Autocrat, c/n 2806, was rebuilt in 1962 as a single seat crop sprayer by Agricultural Aviation Pty Ltd with a new all metal fuselage aft of the pilots seat containing the chemical hopper. This conversion does not seem to have acquired any new designation, but in 1965 Agricultural Aviation further modified the aircraft by raising the rear roof line similar to an Autocar and fitting a 190 hp Lycoming O-435 64/65 powerplant. In this guise it was known as the J/5-190 Ag-Special.
  • J/5GL
  • One J/5G Cirrus Autocar, c/n 3070, converted in 1964-8 and fitted with a 150 h.p. Lycoming O-360 powerplant.
  • J/5G/A1
  • One J/5B Autocar, c/n 3097, rebuilt in August 1971 by Aerosmith at Bankstown. Fitted with floats, it featured a new fin and rudder, ventral fin, revised rear cabin glazing and a Lycoming 150 h.p. O-360 powerplant.
  • J/5G/A2
  • J/5G Autocar rebuilt and fitted with a Lycoming 150 h.p. O-360-A1A powerplant. A total of 3 conversions were produced.
  • J/5G-180
  • One J/5G Cirrus Autocar, c/n 3173, converted in 1990 and fitted with a 180 h.p. Lycoming O-360 powerplant.
  • Beech Hawk
  • One J/5G Cirrus Autocar, c/n 3064, rebuilt between 2001 and 2011 with a new and much modified fuselage and fitted with a Lycoming IO-360.

Projected Variants

  • J/5J
  • J/5 with 150 h.p. Lycoming 0-320-B2B powerplant, along with the enlarged fin and rudder of the J/5B.
  • J/5X Aiglet Trainer
  • J/5F with 150 h.p. Lycoming 0-320-B2B powerplant.
  • J/5Z Alpine
  • J/5Q with 150 h.p. Lycoming 0-320-B2B powerplant. C/n 3126 had AAN#03589 made on 15 October 1954 as for modification of J/5L to J/5Z, but is presumed not proceded with.
  • J/8K Aiglet Trainer
  • J/5K with central flap lever.
The J/5 Family

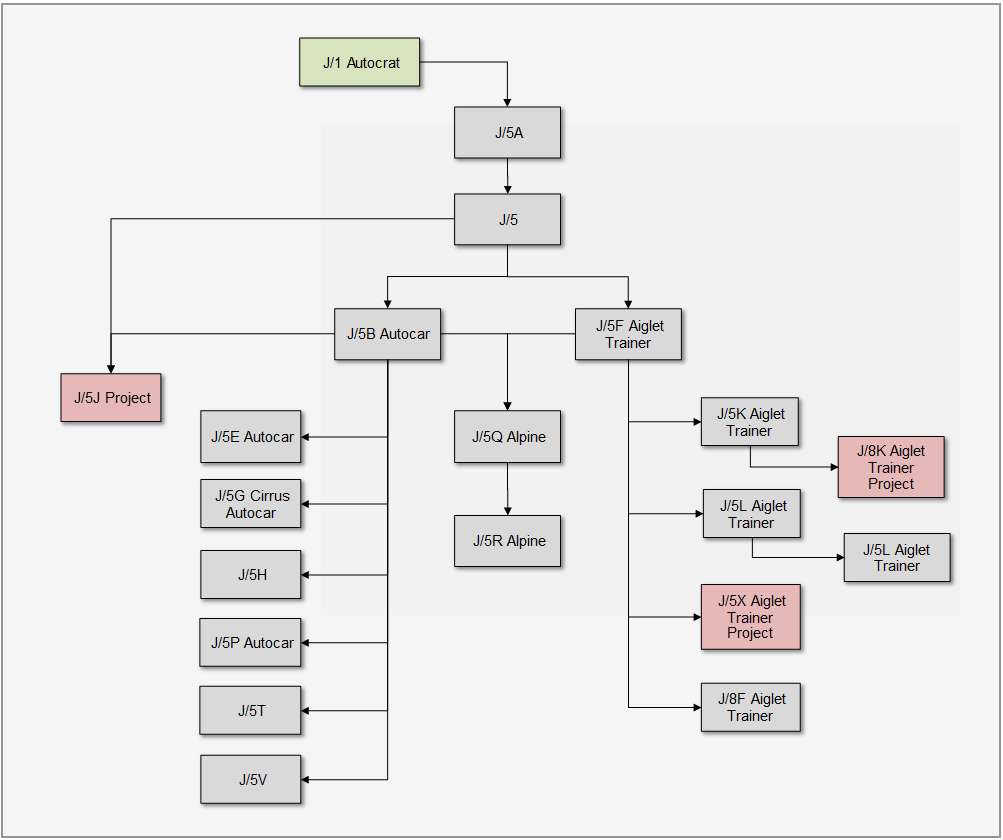

The following chart shows the relationships between the various Auster produced J/5 models.
J5_Family
J/5 Conversions

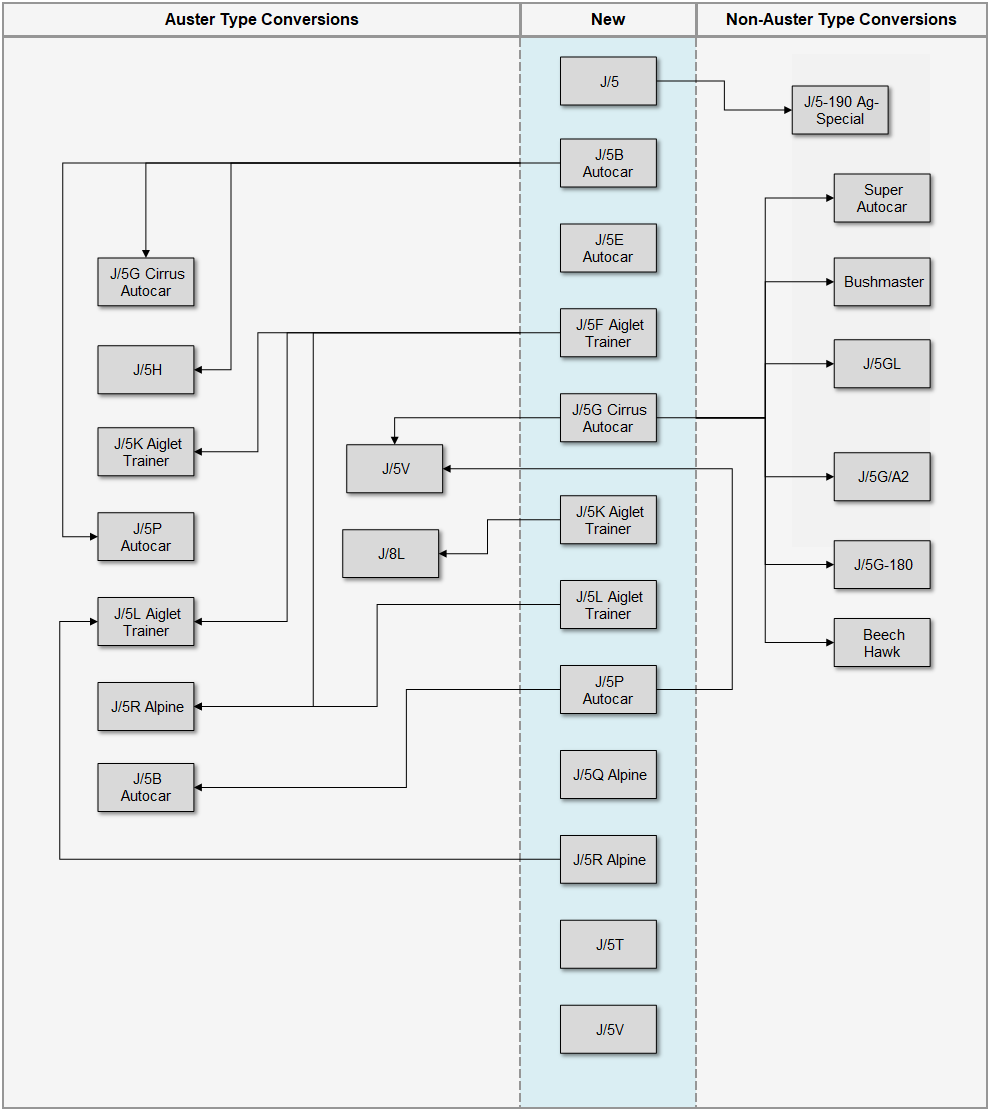

The following chart shows how Auster J/5 models were converted other J/5 variants, both standard Auster types and otherwise.
J5_Conversions

Production Tables Index

J/5 and J/5A
J/5B Autocar
J/5E
J/5F Aiglet Trainer
J/5G Cirrus Autocar
J/5K Aiglet Trainer
J/5L Aiglet Trainer
J/5P Autocar
J/5Q Alpine
J/5R Alpine
J/5T
J/5V Autocar
J/8F Aiglet Trainer
J/5 Series - Aircraft With Military Air Arms

J/5 and J/5A
C/n Initial
Registration		 Notes
 59 aircraft built by Auster Aircraft Ltd, Rearsby, between 1947 and 1952.
 2093  G-AJER  Prototype, converted from a basic J/1 Autocrat airframe under Auster Mod No.1442 and designated J/5A. Initially registered to Auster Aircraft Ltd.
 To JW an MW Morton, Bundoran Station, Nonda, Qld in October 1947 as VH-KSB, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2094  NZ1701  G-AJES reserved for Auster Aircraft Ltd but ntu. To RNZAF as NZ1701 (See Military Table). To Piako Aero Club, Waharoa, in May 1956 as ZK-BQL.
 2095  NZ1702  To RNZAF (See Military Table). To JF Crandle, KC Jacobs, TR Jacobs and RD Meads, Warkworth, Auckland, in July 1970 as ZK-DBU.
 2096  NZ1703  To RNZAF (See Military Table).
 2097  VH-KSC  To Newcastle Aero Club, Broadmeadow
 2098  VH-KSD  To Robert H Gibbes, Wewak, New Guinea.
 2099  VH-KSF  To Peel River Land and Mineral Co, Tamworth, NSW.
 2801  NZ1704  To RNZAF (See Military Table). To James Aviation Ltd, Rotorua, in February 1952. Returned to the RNZAF in June 1952.
 2802  NZ1705  To RNZAF (See Military Table). To G Greig, Broadmeadow, NSW, in June 1957 as VH-PMG. To VH-AOS.
 2803  NZ1706  To RNZAF (See Military Table). To Aircraft Supplies Ltd, Palmeston North, in May 1954 and rebuilt as J/1B Aiglet ZK-BGT.
 2804  VH-KSE  To VH Anning, Richmond.
 2805  VH-KSH  To Active Service Motors, Roma, Qld.
 2806  VH-KSG  To WS Gall, Broken Hill. To VH-DDX. Wrecked and rebuilt by Agricultural Aviation Pty Ltd in 1962 as a crop sprayer with an all-metal fuselage and Gipsy
 Major 1J powerplant VH-SCO, c/n 648BJ. Crashed and rebuilt as the J/5-190 Ag-Special.
 2807  VH-KSI  To Newcastle Aero Club, Broadmeadow.
 2808  VH-KSJ  To Murdoch and Murphy, Healesville, Vic. To VH-WAY, VH-RJP.
 2809  VH-KSK  To RH Gibbes, Wewak, New Guinea.
 2810  VH-KSL  To K Wilson and Peter K Wilson, Barraba, NSW
 2811  VH-KSN  To Nonning Pastoral Co Ltd, Carnavon.
 2812  VH-KSM  To Guinea Air Traders Ltd, Lae, New Guinea.
 2813  VH-KSP  To O Ebert, Warren, NSW. To VH-KSL.
 2814  VH-KSQ  To Gibbes Sepik Airways Ltd, Wewak, New Guinea.
 2871  AP-ACI  To the Karachi Aero Club Ltd. To AP-AJU.
 2872  VH-KSR  To C Gatenby, Madang, New Guinea. To VH-WFB, VH-WEA.
 2873  VH-KSS  To Gibbes Sepik Airways Ltd, Wewak, New Guinea. To VH-WBS
 2874  G-AJYE  To Donald Sinclair Hind, Parkstone, Dorset. To VP-AAB, F-OAMQ.
 2875  VH-KST  To Gibbes Sepik Airways Ltd, Wewak, New Guinea, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-BYY
 2876  G-AjYG  Originally registered to Auster Aircraft as G-AJYG, fitted with double rear seat. To Direçcaã-General da Aeronáutica Civil, Lisbon, in 1949 as CS-ADZ.
 2877  VH-KSU  To Gibbes Sepik Airways Ltd, Wewak, New Guinea, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2878  SR-54  To Southern Rhodesia Air Force (See Military Table). To W Springer, Chipinge, in 1955 as VP-YNR. To 9J-RBJ.
 2879  SR-53  To Southern Rhodesia Air Force (See Military Table).
 2880  SR-55  To Southern Rhodesia Air Force (See Military Table).
 2881  SR-56  To Southern Rhodesia Air Force (See Military Table). To J Rau, Salisbury, in 1995 as VP-YNS. To ZS-CNS, ZS-WNS.
 2882  VH-SKA  To James William Packer, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-IAL.
 2883  VH-CAM  To the Department of Civil Aviation, Melbourne.
 2884  VH-KSV  To Langley G Hancock, Coolawanyah, WA, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2885  VT-DCF  To the Madras Flying Club, Madras. First four seat aircraft, fitted with a rear bench seat.
 2886  VH-KSW  To FS Tomlinson, Tarrabandai, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2887  VH-KSX  To Gibbes Sepik Airways Ltd, Wewak, New Guinea, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2888  VH-KSY  To Dr John Cranstoun McInerney, Wewak, New Guinea.
 2889  G-AJLN  To Auster Aircraft Ltd, fitted with Auster model R2400 float chassis in January 1951, then fitted with Bonmartini tubular tracker undercarriage, June 1951.
 To The Government of Sind (today Sindh), Karachi, via RK Dundas Ltd, in September 1951 as AP-AFI. To AP-AJV.
 2890  VH-KSZ  To Airflights Pty Ltd, Perth.
 2891  VH-KAR  To the Catholic Mission of the Divine World, Wewak, New Guinea, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2892  ZK-AXJ  To the Stratford Aero Club, via Kingsford Smith Aviation Service, Bankstown, NSW (as VH-KAD).
 2893  VH-KAP  To Fitzroy Estrates Ltd, Sydney, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2894  VH-KAV  To AJ McBride, Menindee, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2895  VH-KBA  To E Killen and Sons Pty Ltd, Nyngan, NSW.
 2896  VH-KBD  To Overland Air Service, Condobolin, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Rebuilt in 1956 as J/5 (modified), details unknown.
 2897  VH-KBH  To Dr GL Young, Forbes, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2898  VH-KBL  To Airflights Pty Ltd, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-BWS, VH-MSP.
 2899  VH-KBM  To A Finch, Wilcannia, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2900  PT-ADJ  To Cristoao Schauff.
 2901  VH-KAG  To E Killen and Sons Pty Ltd, Nyngan,NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. This airframe, Frame No TAY801EK, was originally
 registered with c/n 2890, but this was already used. Amended in March 1951 by KSAS, but possibly without informing Auster, as they too used the same
 c/n later that year.
 2901 (2)  YE-AFF  Initially registered to RK Dundas as G-AMMI before sale to the Kingdom if Yemen.
 2902  AP-AFP  Initially registered to RK Dundas as G-AMMU before sale to the the Government of Sind (today Sindh), Karachi.
 2903  VQ-CAA  To Cyprus Airways, Nicosia (initially on the British register to the same owner as G-AMPU). To G-AMPU.
 2904  VQ-CAB  To Cyprus Airways, Nicosia (initially on the British register to the same owner as G-AMPV). To G-AMPV.
 2905  G-AMPJ  To Aerial Spraying Contractors Ltd, Boston, Lincs.
 2906  G-AMPK  To Aerial Spraying Contractors Ltd, Boston, Lincs. To F-OAKN
 3000  G-AMPX  To TA Stephenson and Sons, York. To ZK-BDW.
 3147  (none)  Proposed conversion of Auster 5, c/n 1216, to J/5 standard, but not proceeded with.
Total J/5 Production  59
Total J/5A Production  1
Total J/5 Production (Not Completed)  1
J/5B Autocar
C/n Initial
Registration		 Notes
 83 aircraft built by Auster Aircraft Ltd, Rearsby. Built between 1949 and 1958.
 2908  G-AJYK  Prototype, first flew in August 1949. To Airviews Ltd, Barton.
 2909  G-AJYM  To Mitchell Engineering Ltd, Peterborough.
 2910  G-AJYN  To Joseph Vidal Heriz-Smith, Harrow Weald, Middlesex. To EC-ANK.
 2911  VT-DEL  To the Indo Overseas Corporation, New Delhi.
 2912  HB-EOU  To JH Keller AG, Zurich. To D-EKEL, D-EMYD, D-EGHG, OY-DEL.
 2913  G-AJYO  To Thomas Frederick Ringer, Kings Lynn.
 2914  VH-KAL  To Dickson Air Service, Bourke, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2915  ZK-AVN  To the Civil Aviation Administration, Wellington, via Boon and Co.
 2916  VP-YIJ  To D Kay, Marandellas, via Rhodesian Aircraft Maintenance Services. To ZS-CEY, ZU-FNT.
 2918  VH-KAS  To Murdoch and Murphy, Healesville, Vic, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2919  VH-KAN  To the Lutheran Mission Inc, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2920  VH-KAT  To IN Kelman, Richmond, Qld, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2921  CR-SAF  To Service de Transportes Aéros, St Thomas Isle.
 2922  VH-KAX  To BJ Trethowen, Melton South, Vic, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-GVC, VS-ASX.
 2923  G-AMFO  To Sissleys Cycles (Essex) Ltd, Dagenha.
 2924  PT-AEN  To Evaristo Fonseca.
 2925  PT-ADK  To Italo Mortari, São José do Rio Preto, São Paulo.
 2926  PT-ADL  To Joaquim Raimundo de Araujo Budag
 2927  G-Ajyv  To Alexander Stuart Mackenzie-Low. To EC-WIR, EC-AIR.
 2928  G-AJYY  To Leonard Reginald Snook, Southsea, Hants. To VH-DYY, VH-TOR. Converted to J/5G in 1966, while owned by Austerserve Pty Ltd, Bankstown.
 2929  YI-ACA  To the Iraqi Aeroplane Society.
 2930  YI-ACB  To the Iraqi Aeroplane Society.
 2931  VT-DFP  To the Jokai (Assam) Tea Company Ltd, Lahowal.
 2932  PH-NEH  To CC Hora Siccama, Wassenaar.
 2933  G-AMFP  To Aviation Traders Ltd, Southend.
 2934  F-OAJH  To Office des Bois de l'AEF/ Inspection des Eaux and Forêts de l'Afrique Aquatoriale Française, Libreville, Gabon.
 2935  CC-PAZ  To Luis Reczbarren.
 2936  VH-ASD  To Maurice W Oliver.
 2937  VH-KBF  To SJ Heaney, Newcastle, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2938  VH-KBP  To the Tasmanian Aero Club, Launceston, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2939  VH-KBT  To Hunts Canning Co Pty Ltd, Perth, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2940  VH-KBW  To V&D Hobbs Kendenup, WA, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2942  VH-KBB  To Bush Pilots Airways Pty Ltd, Cairns, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2943  ZK-AYN  To Bay of Plenty Air Services, via British Aircraft Ltd.
 2944  ZK-AYQ  To EJ Bland, Palmeston North.
 2945  VH-KBZ  To Henry D Knight, Cobar, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Rebuilt as J/5G in 1955 by Kingsford Smith Aviation Service as
 VH-BYP
 2946  VH-ACL  To Comongin Pty Ltd, Melbourne, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2947  VH-ADS  To Guinea Airways Ltd, Adelaide, via Kingsford Smith Aviation Service, Bankstown, NSW. (Originally registered to Kingsford Smith Aviation Service as
 VH-ADZ, but ntu). To VH-BPA. Rebuilt as J/5H in 1956 by Kingsford Smith Aviation Service as VH-KCO. To VH-BPA.
 2948  G-AMMZ  To Hunting Aerosurveys Ltd, Elstree.
 2949  VP-TBD  To Mett Tesarik, Orinduik, Ireng River, British Guiana. To VP-GAO.
 2950  G-AMNB  To the Royal Artillery Aero Clib Ltd, Thruxton. To ZK-BET.
 2951  VH-ADU  To LH Ford, Dubbo, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-AJP, VH-TMD, VH-CDS.
 2952  VT-DGF  ToSN Majmudar, Calcutta.
 2953  G-AMNC  To The Bristol Aeroplane Co Ltd, Filton. Modified to J/5P in 1956. To ZK-BVL.
 2954  G-AMLI  To John William Cox. To ZK-BAE.
 2956  VH-BYC  To Lewis and Son, Mungindi, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2959  F-OALO  To Aéro Club de Fianarantsoa, Madagascar.
 2960  YI-ACE  To Iraq.
 2961  G-AMPW  To Bees Flight Ltd, Sandown.
 2962  F-BGPN  To Aéro Club de la Somme. To G-AXMN.
 2963  F-DAAP  To Société Penarroya, Casablanca, Marocco.
 2964  F-OALF  To République Française, Direction des Travaux Publics de Tunisie, Tunis, El Aquina.
 2965  PT-ANH  To Paulo da Silva Fernandes, Niterói, Rio de Janeiro.
 2966  PT-ANI  To Organização Mineira de Transportes Aereos (OMTA), Belo Horizonte, Minas Gerais.
 2967  EC-AHC  To Gobierno General Territorios Guinea, Fernando Pó (modern Bioko), Equatorial Guinea.
 2968  PT-ANJ  To Jose Edgar Correa.
 2969  PT-ANK  To Nelso Borges.
 2970  PT-ANL  To Raimundo Formigli Reboucas.
 2971  VR-SDO  To British Malayan Petroleum Ltd, Seria, Borneo. To VR-UDO, VR-WAA, VH-WBA.
 2972  YI-ACG  To the Iraqi Flying Association, Baghdad.
 2978  YI-ACH  To the Iraqi Flying Association, Baghdad.
 2979  YI-ACI  To Iraq.
 3056  F-OAOX  To Aéro Club d'Abidjan, Ivory Coast.
 3057  F-OAKA  To Aéro Club du Tulear, Madagascar.
 3058  F-OAOC  To République Français, Service de la Santé Publique en Côte d'Ivoire, Abidjan.
 3063  VT-DGY  To the Government of Mysore Flying Training School, Jakkur.
 3075  G-ANNX  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAF, 9K-AAF. To Kuwait Ait Force (See Military Table).
 3076  G-ANNY  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait.
 3097  VH-BPB  To Bush Pilots Airways Pty Ltd, Cairns. Rebuilt in August 1971 by Aerosmith at Bankstown as J/5G/A1 VH-TTH for Thomas S Harrison, Lugarno, NSW.
 3154  VH-BPC  To Bush Pilots Airways Pty Ltd, Cairns.
 3162  VH-BYS  To the Salvation Army (Victoria) Propert Trust, Melbourne, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3164  VH-STB  To E Cunningham, Collinsville, Qld. To VH-SNK.
 3166  VH-RNB  To the Royal Newcastle Aero Club, Broadmeadow. To VH-ENB, VH-KCW, VH-KGW.
 3167  VH-RNA  To the Royal Newcastle Aero Club, Broadmeadow. To VH-BNA.
 3170  VH-DNM  To the North Queensland Aero Club, Cairns. To VH-KJB, VH-DNM.
 3186  VH-BYQ  To the Queensland Ambulance Transport Brigade, Cairns, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3190  VH-BPD  To Bush Pilots Airways Ltd, Cairns, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-WRH, VH-EOI.
 3260  AP-AJM  To the Multan Flying Club.
 3261  VH-KCL  To HWR Donaldson and Son, Emerald, Qld, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-WCL.
 3264  VH-KCN  To TW Murray, Burren Junction, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3266  VH-KBD  To BW Rayner, Mudgee, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Converted to J/5P in June 1966.
 3268  VH-BGU  To Homewood Air Services, Rockhampton. Qld.
 3269  VH-SNA  To Homewood Air Services, Rockhampton. Qld.
Total Production  83
J/5E
C/n Initial
Registration		 Notes
 1 aircraft built by Auster Aircraft, Rearsby in 1950.
 2917  G-AJYS  Prototype. To Auster Aircraft Ltd. Entered by Auster in the Daily Express South Coast Air Race of 16 September 1950. Frame converted to J/5 standard in
 1961 and sold as spares.
Total Production  1
J/5F Aiglet Trainer
C/n Initial
Registration		 Notes
 91 aircraft built by Auster Aircraft Ltd, Rearsby. Built between 1951 and 1956.
 2709  G-AMKF  Prototype, initially flown May 1951 under B Conditions as G-25-1, then registered to Auster Aircraft Ltd as G-AMKF. To VH-AFS, VH-WDC.
 2712  VH-AFT  To KHS Murray, Bourke, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2713  VH-ADT  To RH Hamblin, Mossgiel, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2714  VH-AFK  To Hazelton Air Taxi and Charter Service, Toogong, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2716  G-AMRF  To Rauri Ian Lambert Chisholm, Saxmundham, Suffolk. To VT-DHA, G-AMRF. Fitted with Gipsy Major 10-1 by Air Navigation and Trading Co Ltd in 1970.
 2717  VH-AGM  To WA Murrell, Hillston, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2718  G-AMOS  To Thomas William Hayhow, Bagshot, Surrey. To F-OAJV.
 2722  VT-DGE  North India Flying Club, Jullundur. To VT-DYU.
 2723  JA3012  To Otori Kai Flying Club.
 2724  W4102  To Royal Pakistan Air Force (See Military Table). To the Lahore Fling Club in 1962 as AP-ANO.
 2725  W4109  To Royal Pakistan Air Force (See Military Table). To the Rawlpindi Flying Club in 1960 as AP-ALK.
 2726  W4100  To Royal Pakistan Air Force (See Military Table).
 2727  W4101  To Royal Pakistan Air Force (See Military Table).
 2728  W4108  To Royal Pakistan Air Force (See Military Table).
 2729  JA3032  To Feng Association Kansai Branch, Hanshin Airfield.
 2731  VT-DGD  Initially registered to RK Dundas as G-AMNM before sale to India.
 2732  VH-BWJ  To the Royal Aero Club of South Australia, Parafield, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-UEA, VH-JNT.
 2733  VY-BYE  To the Royal Aero Club of Broken Hill, Broken Hill, via Kingsford Smith Aviation Service, Bankstown, NSW. Converted to J/5L in1955/9. (See note 1)
 2734  JA3020  To Japan.
 2735  VH-BYF  To the Queensland Ambulance Transport Brigade, Cairns, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-SAE, VH-BYF (See note 2)
 2736  VH-BYG  To the Royal Aero Club of Broken Hill, Broken Hill, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-WHS.
 2737  JA-3021  To Japan.
 2738  W4103  To Royal Pakistan Air Force (See Military Table).
 2739  W4104  To Royal Pakistan Air Force (See Military Table). To the Government of Pakistan in 1955, operated by the East Pakistan Flying Club, Dacca, as AP-AHD.
 2740  W4107  To Royal Pakistan Air Force (See Military Table). To the Rawalpindi Flying Club in 1960 as AP-AHD.
 2741  W4106  To Royal Pakistan Air Force (See Military Table).
 2742  W4105  To Royal Pakistan Air Force (See Military Table).
 2743  VP-TBH  To Sir Harold E Robinson, Woodford Lodge Estate, Trinidad. To 9Y-TBH
 2745  G-AMMS  (Reportedly initial c/n allocation was 2720) To Auster Aircraft Ltd, fitted with Gipsy Major 1F instead of Gipsy Major 1. Converted to J/5L in August 1953.
 Converted to J/5K in 1954. To James Keith O'Neill Edwards, Uckfield, Sussex, in August 1954.
 2756  ZK-BBT  To Canterbury Aero Club, via British Aircraft Ltd, Wellington.
 2758  OH-CHT  Initially registered to WS Shackleton as G-AMVM before sale to F Turz, Leopoldville. To 9O-CHT, 9Q-CHT, but neither used.
 2759  ZK-BBU  To Nelson Aero Club, Nelson, via British Aircraft Ltd, Wellington. To ZK-CYQ.
 2760  W4110  To Royal Pakistan Air Force (See Military Table). To the Lahore Flying Club in 1962 as AP-ANH.
 2761  W4111  To Royal Pakistan Air Force (See Military Table). To S Habib in 1962 as AP-ANX.
 2762  W4112  To Royal Pakistan Air Force (See Military Table).
 2763  W4113  To Royal Pakistan Air Force (See Military Table). To the Peshawar Flying Club in 1962 as AP-ANV.
 2764  W4114  To Royal Pakistan Air Force (See Military Table). To Syed NA Shah, Peshawar Flying Club in 1963 as AP-AOD.
 2765  AP-AFV  To the Government of Pakistan, via RK Dundas Ltd, and operated by the Karachi Aero Club.
 2766  AP-AFW  To the Government of Pakistan, (via RK Dundas Ltd?), and operated by the Karachi Aero Club.
 2767  A-408  To the Arab Legion Air Force (See Military Table). To the Aero Club of Lebanon as OD-APA. To G-ASLS.
 2768  G-AMOV  To Denys Martin, Dinas Powis, Glamorgan. To VH-BTQ.
 2769  YI-ACC  To the Iraqi Flying Association, Baghdad.
 2770  YI-ACD  To the Iraqi Flying Association, Baghdad.
 2771  A-409  To the Arab Legion Air Force (See Military Table). To the Aero Club of Lebanon as OD-APB. To G-ASLT.
 2772  ZK-BBZ  To the Canterbury Aero Club, Christchurch, via British Aircraft Ltd, Wellington.
 2773  G-AMYD  To the College of Aeronautics, Cranfield, via WS Shackleton Ltd. Converted to J/5L in 1964.
 2774  YV-T-FTA  To JV Monja, Caracas.
 2775  G-AMYE  To Airwork ltd, London, via WS Shackleton Ltd. To ZK-BDO.
 2776  F-BGKZ  To Raymond Delvert, Villeneuve-sur-Lot. To G-BGKZ.
 2777  YI-ACF  To Iraq.
 2778  VP-YJF  To GH de Bary, Sinoia. To ZS-HOS, ZU-IFZ.
 2779  G-AMRL  To Hubert Broughton Showell, Fleggburgh, Norfolk, via WS Shackleton Ltd. To EI-AUS.
 2780  G-AMTA  To Airways Aero Associations Ltd, Croydon.
 2781  G-AMTB  To Airways Aero Associations Ltd, Croydon.
 2782  G-AMTC  To Airways Aero Associations Ltd, Croydon. To D-EFEP, G-AMTC.
 2783  G-AMTD  To Airways Aero Associations Ltd, Croydon. To EI-AVL, G-AMTD.
 2784  G-AMTE  To Airways Aero Associations Ltd, Croydon. To VH-WKY.
 2785  PK-AAA  To the Republic of Indonesia and operated by Akademi Penerbangan Indonesia (API - Aviation Politechnic of Indonesia), Tangerang.
 2786  PK-AAB  To the Republic of Indonesia and operated by Akademi Penerbangan Indonesia (API - Aviation Politechnic of Indonesia), Tangerang.
 2787  PK-AAC  To the Republic of Indonesia and operated by Akademi Penerbangan Indonesia (API - Aviation Politechnic of Indonesia), Tangerang.
 2788  PK-AAD  To the Republic of Indonesia and operated by Akademi Penerbangan Indonesia (API - Aviation Politechnic of Indonesia), Tangerang.
 2789  G-AMTR  To Club Aviation (Cheltenham) Ltd.
 2790  G-AMUI  To Air Service Training, Hamble.
 2791  G-AMUJ  To Air Service Training, Hamble.
 2795  AP-AFU  To the Government of Pakistan, and operated by the East Pakistan Flying Club, Dacca.
 2796  AP-AFX  To the Government of Pakistan, and operated by the Lahore Flying Club.
 2797  AP-AFY  To the Government of Pakistan, and operated by the Lahore Flying Club.
 2798  AP-AFZ  To the Government of Pakistan, and operated by the Karachi Flying Club.
 2799  W4115  To Royal Pakistan Air Force (See Military Table). To Don Raymond in 1962 as AP-ANU. Probably modified to J/5R standard.
 2800  W4116  To Royal Pakistan Air Force (See Military Table).
 3104  G-AMZI  To David Robert Carnegie, Sir John Angus Murray Carnegie and Micheal Andrew Carnegie, Digswell, Herts.
 3106  ZK-BCK  To Canterbury Aero Club, Christchurch, via British Aircraft Ltd, Wellington.
 3107  G-AMZT  To the College of Aeronautics, Cranfield.
 3108  G-AMZU  To the College of Aeronautics, Cranfield.
 3109  ZK-BDY  Initially registered to WS Shackleton as G-ANAO before sale to the Southland Aero Club, Invercargill. To ZK-CGF, ZK-BDY.
 3110  G-ANAU  To Parkers Stores Ltd, Edinburgh. To ZK-BRA. Fitted with 150 hp Lycoming O-320 powerplant.
 3111  ZK-BCQ  To Canterbury Aero Club, Christchurch, via British Aircraft Ltd, Wellington.
 3112  ZK-BCS  To Auster Air Services Ltd, Timaru, via British Aircraft Ltd, Werllington.
 3113  G-ANNV  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAD, 9K-AAD. To Kuwait Ait Force (See Military Table).
 3115  F-OARJ  To Aéro Club de Bobo-Dioulasso, Birkina-Faso.
 3120  G-ANNW  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAE, 9K-AAE. To Kuwait Ait Force (See Military Table).
 3124  G-ANSV  To Barrow, Hepburn and Gale Ltd.
 3125  AP-AHG  To the Government of West Pakistan, via RK Dundas Ltd.
 3127  AP-AHE  To the Government of West Pakistan. (via RK Dundas Ltd?)
 3130  AP-AHF  To the Government of West Pakistan, via RK Dundas Ltd.
 3137  VH-BYX  To PD Hawker, Cunnamulla, Qld, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3138  VH-MPW  To MP Willsallen, Harden, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-CDL.
 3140  SU-AIK  To Misr Aeronautical Institute, Heliopolis.
 3142  SU-AIL  To Misr, Heliopolis.
 3145  AP-AJN  To the East Pakistan Flying Club, Dacca.
 3146  AP-AJO  To the East Pakistan Flying Club, Dacca.
Total Production  91
J/5G Cirrus Autocar
C/n Initial
Registration		 Notes
 93 aircraft built by Auster Aircraft Ltd, Rearsby. Built between 1951 and 1957, plus one aircraft 1963.
 2955  VH-BYD  To AM and MG Cavanaugh, Conargo, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2957  VH-BYI  To DP Griffiths, Toowoomba, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 2958  VH-BYH  To CJ Letchford, Theodore, Qld, via Kingsford Smith Aviation Service, Bankstown, NSW. Rebuilt in 1964 as a J/5G/A2, while owned by MK Donaldson.
 2973  F-OAMO  Originally registered to C Colanso, Nairobi, as VP-KJN, but cancelled. To Club Aeronautique De Douala, Cameroun. To F-BASB.
 2974  VP-KKM  PT-ANM reserved but ntu. To Desert Locust Control (Food and Agriculture Organisation), Nairobi. To AP-AHI, AP-AJW, G-ARUT.
 2975  JA3022  To Japan.
 2976  JA3027  To Japan.
 2977  JA3023  To Japan.
 2980  VP-GAL  To Bookers Sugar Estates, Georgetown, British Guiana.
 2981  VH-ADT  To Hazelton Air Taxi and Charter Service, Toogong, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Used for several record breaking long
 distance flights within Australia by Margaret Cornwall. Converted to Super Autocar in 1954.
 2982  G-AMKG  To Auster Aircraft Ltd. Prototype, first flew in July 1951. To WC Gall, Broken Hill, NSW, in October 1952 as VH-ADX, via Kingsford Smith Aviation Service,
 Bankstown, NSW.
 2985  G-AMOY  To Pest Control Ltd, Bourn. To SN-ABI, ST-ABI.
 2986  G-AMOZ  To Pest Control Ltd, Bourn. To SN-ABI, ST-ABI.
 2987  G-AMPA  To Pest Control Ltd, Bourn. To SN-ABE, ST-ABE.
 2988  G-AMPB  To Pest Control Ltd, Bourn. To SN-ABF, ST-ABF.
 2989  G-AMPC  To Pest Control Ltd, Bourn. To SN-ABC, G-AMPC, SN-ABG, ST-ABG.
 3051  OO-CVH  To Gebroeders Van Hee, Stanleyville. To 9O-CVH, 9Q-CVH, CR-LDL.
 3052  G-AMYR  To Neville Ashley Rogers, Bedford. To YE-AAM.
 3053  JA3028  To Japan.
 3054  JA3029  To Japan.
 3055  VP-KPP  PT-ANN reserved but ntu. To Desert Locust Control (Food and Agriculture Organisation), Nairobi.
 3059  A11-300  To the Royal Australian Navy (See Military Table). To Murray Border Flying Club, Cobram, Vic, in November 1963 as VH-MBF.
 3060  SN-AAF  To Sudan Airways Ltd. To ST-AAF.
 3061  VP-KKN  To Desert Locust Control (Food and Agriculture Organisation), Nairobi. To AP-AHJ, G-ARKG.
 3062  VP-KKO  To Desert Locust Control (Food and Agriculture Organisation), Nairobi. To AP-AHK, N9741F, G-CKXF.
 3064  A11-301  PT-ANO reserved but ntu. To the Royal Australian Navy (See Military Table). To VH-MRD. Rebuilt 2001-11 as a Beech Hawk.
 3065  G-AMZV  To Saunders-Roe Ltd, Cowes, IoW. Used for Hydro-Ski tests.
 3066  VP-RCT  To The Director of Civil Aviation, Lusaka. To VP-YMD.
 3067  VP-RCU  To The Director of Civil Aviation, Lusaka. To VP-YMD.E, VP-RME, 9J-RME.
 3068  G-ANBS  To Pest Control Ltd, Bourn. To SN-ABH, ST-ABH.
 3069  ZK-BDJ  To Auster Air Services Ltd, Timaru, via British Aircraft Ltd, Werllington. Fitted with a Lycoming O-320 in May 1970 when owned by AC Robinson,
 Rotherham.
 3070  ZK-BDK  To Auster Air Services Ltd, Timaru, via British Aircraft Ltd, Werllington. Rebuilt as J/5GL 1965/8 as ZK-CXA, c/n 3070R. To ZK-BDK and rebuilt to
 J/5G status in 1988.
 3071  F-DABM  To Société Air Agro Maroc, Port Lyautey, Morocco. To CN-TTW.
 3072  F-DABN  To Société Air Agro Maroc, Port Lyautey, Morocco, but not delivered. Allegedly rebuilt as c/n 3160.
 3073  F-OAPK  To Société Cie Laotienne de Commerce and de Transports, Vientiane, Laos.
 3074  F-AOPL  To Société Cie Laotienne de Commerce and de Transports, Vientiane, Laos.
 3077  ZS-DJG  To Agriculture (Pty) Ltd, Johannesburg. To ZS-RAF, ZS-UOU.
 3078  ZS-DJH  To Agriculture (Pty) Ltd, Johannesburg.
 3079  VH-PSM  To Aviation Services (SA) Ltd, Adelaide, as VH-BTH but ntu. To CH Martin Ltd, Gilles Plains, SA.
 3080  LV-FGJ  To Roberto L Cavanagh, via Anderson Levanti Services Ltd, Buenos Aires.
 3081  LV-FEY  To Santiago Moriano, via Anderson Levanti Services Ltd, Buenos Aires.
 3082  LN-BDA  To A/S Norrønafly, Oslo. To SE-CBS.
 3083  SE-BYT  To AB Stockholms Aero, Ulvsunda.
 3084  LV-FGB  To Aeroclub Coronel Pringles, via Anderson Levanti Services Ltd, Buenos Aires.
 3085  LV-FGC  To Leonardo Lozada, Conception, via Anderson Levanti Services Ltd, Buenos Aires.
 3086  LV-FFZ  To Aeroclub Gonzales Chavez, via Anderson Levanti Services Ltd, Buenos Aires.
 3087  LV-FGH  To Joge EC Reynal, via Anderson Levanti Services Ltd, Buenos Aires.
 3088  LV-FGL  To Cento Aviaçion Civil San Juan, Pocito, via Anderson Levanti Services Ltd, Buenos Aires.
 3089  LV-FGM  To Orlando Arrechea Harriet, Bahia Blanca, via Anderson Levanti Services Ltd, Buenos Aires.
 3090  LV-FGN  To Aeroclub Alto Paraná, Bahia Blanca, via Anderson Levanti Services Ltd, Buenos Aires.
 3091  G-ANSW  To Alexander Brian Templeton Thompson, Sunny Corner, NSW, Australia. To VH-BYT
 3092  LV-FGO  To Aeroclub Bolivar, via Anderson Levanti Services Ltd, Buenos Aires.
 3093  F-OARL  To Aéro Club de Kankan, Guinea. To CN-TYW.
 3094  VH-CAM  To the Department of Civil Aviation, Melbourne. To VH-FAM.
 3095  VH-AZK  Initially registered to WS Shackleton as G-ANVG before sale to the Royal Queensland Aero Club.
 3098  VH-BSX  To Reverend HU Shepherdson Methodist Mission, Elcho Is, NT. To VH-JGL.
 3099  VH-BTA  To WJ Elder, Tero Creek, NSW.
 3153  G-ANVN  To the Secretary of State for the Colonies, London. To the Colonial Insecticides Research Unit as XJ941 (See Military Table). To G-ANVN, VR-TBR, VP-KPZ.
 3156  VR-NBC  To the Northern Region Government of Nigeria.
 3157  VR-NBB  To the Northern Region Government of Nigeria. To G-ARDA.
 3158  VH-KCA  Initially registered to WS Shackleton, London, as G-ANVM before sale to G Magoffin, Chorregon, Qld, via Kingsford Smith Aviation Service, Bankstown,
 NSW.
 3159  G-ANVT  To Geoffrey Walter Asher, Codnor, Derbyshire, via WS Shackleton, London. To VH-KCE.
 3160  VH-API  To Guinea Airways Ltd, Adelaide. Reportedly a rebuild of c/n 3072. To VH-KEV.
 3163  VH-BYV  To AT Tindall, Tambo, Qld, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-NVY.
 3168  VH-BSZ  To PA Drew, Burra, SA.
 3169  VP-KNL  To Desert Locust Control (Food and Agriculture Organisation), Nairobi. To AP-AHL, G-ARNB.
 3172  VH-BTB  To AJ Williams, Lillimur, Vic.
 3173  VH-RAD  To Robby's Aircraft Co Ltd, Parafield. To VH-WWB, VH-JSG. Rebuilt as a J/5G-180 and reflown in January 1990, while owned by Cleve E Gandy,
 Woodville Park, SA.
 3174  LV-FGZ  To Aeroclub Tres Arroyos, Tres Arroyos, via Anderson Levanti Services Ltd, Buenos Aires.
 3175  LV-FHH  To Casa Stewart, via Anderson Levanti Services Ltd, Buenos Aires.
 3176  LV-FHB  To R Arnaudo y Hnos, Laprida, Buenos Aires, via Anderson Levanti Services Ltd, Buenos Aires.
 3177  LV-FHI  To Augusto L Bacque, via Anderson Levanti Services Ltd, Buenos Aires.
 3179  LV-FHC  To Gustavo Artaux, via Anderson Levanti Services Ltd, Buenos Aires.
 3180  LV-FHM  To Gregorio Ibarguren, via Anderson Levanti Services Ltd, Buenos Aires.
 3181  LV-FHN  To Aerclub Laprida, via Anderson Levanti Services Ltd, Buenos Aires.
 3182  LV-FHO  To Carlos A Fossatti, via Anderson Levanti Services Ltd, Buenos Aires.
 3183  LV-FHP  To Gilespie O'Dwyer, via Anderson Levanti Services Ltd, Buenos Aires.
 3184  LV-FHR  To Leonardo Calabres, via Anderson Levanti Services Ltd, Buenos Aires.
 3185  LV-FHS  To Daniel Kierney Buenos Aires, via Anderson Levanti Services Ltd, Buenos Aires.
 3188  VH-KCG  To JJ O'Shannessy, Bourke, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Rebuilt as a J/5G/A2 and reflown on 5 June 1986, when owned
 by Don I Ende, Boyde, Perth, WA.
 3189  VH-KCD  To WA Davey, Cobar, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Converted by Kingsford Smith Aviation in 1959/60 to a Kingsford
 Smith Bushmaster
 3194  VR-NBD  To the Federal Government of Nigeria, Lagos. To SN-AAB
 3195  VR-NBE  To the Federal Government of Nigeria, Lagos. To SN-AAC.
 3196  VH-KCF  To AE Hunt, Terangan Station, nr Nyngan, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3199  G-AOIY  To Parkers Stores Ltd, Edinburgh. Rebuilt 1994/2003 as J/5V. To OH-AUM
 3253  CS-ADV  To Aero Condor, Lisbon.
 3254  VH-RDL  To RD Luffman, Tilpa, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3262  ZK-BDN  To the Bristol Aeroplane Co (NZ) Ltd.
 3263  VH-WED  To LH Rumble, Dubbo, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Converted to J/5G/A2 in 1990, when owned by Ross N Moore,
 Raglan, Bathurst, NSW.
 3267  VH-KCY  To Thomas W Cox, Gulong, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3270  VT-DJM  To the Indo Overseas Corporation, New Delhi.
 3272  G-ARUG  Shipped to Australia but returned. To the Portsmouth Aero Club Ltd, Portsmouth, in July 1962.
 3276  G-ASFK  CofR on 7 March 1963. To Anglian Air Charter Ltd, North Denes. To VH-LOO
Total Production  93
J/5K Aiglet Trainer
C/n Initial
Registration		 Notes
 1 aircraft built by Auster Aircraft, Rearsby in 1950.
 3151  G-AMYI  To Auster Aircraft Ltd. Converted to J/8L. To the Yorkshire Aeroplane Club, Leeds, in January 1955. To VH-UYQ, VH-PEA, VH-RIE.
Total Production  1
J/5L Aiglet Trainer
C/n Initial
Registration		 Notes
 27 aircraft built by Auster Aircraft Ltd, Rearsby. Built between.
 3123  G-ANSS  Prototype. To Betty Patricia Rowell, Seaford. To VP-YNK, OO-CFM, 9O-CFM, 9Q-CFM.
 3126  VP-XAA  To Gambia.
 3131  G-ANWX  To George Henry Waugh, Twyford, Hants.
 3132  G-ANWX  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAG, 9K-AAG. To Kuwait Ait Force (See Military Table).
 3133  G-ANXX  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAH, 9K-AAH. To Kuwait Ait Force (See Military Table).
 3134  G-ANXY  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAI, 9K-AAI.
 3135  G-ANXC  To Auster Aircraft Ltd as company demonstrator. First flew 4 May 1955. Modified to J/5R Alpine, first flew 12 November 1955. Varied between J/5L and
 J/5R status between then and September 1959 when sold as a J/5R to Crop Culture (Aerial) Ltd, Bembridge. To VP-UBD, 5Y-UBD, G-ANXC.
 3136  VH-BYW  To ML Rose, New Angledool, Dubbo, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Converted to J/5R in October 1966 while owned by
 EU Klages, Ingleburn, Sydney.
 3139  AP-AHB  To the East Pakistan Flying Club, Dacca.
 3141  G-AOEZ  To Eric Bemrose Ltd, Liverpool.
 3143  G-AOFS  To Hubert Broughton Showell, Fleggburgh, Norfolk. To EI-ALN, G-AOFS.
 3148  G-APLG  To Travelair Ltd, London.
 3149  EP-AIA  To Iran
 3150  EP-AIB  To the Iran Civil Aviation Club.
 3547  EP-AIC  To the Iran Civil Aviation Club.
 3548  EP-AID  To the Iran Civil Aviation Club.
 3549  EP-AIE  To the Iran Civil Aviation Club.
 3550  EP-AIF  To the Iran Civil Aviation Club.
 3551  EP-AG  To the Iran Civil Aviation Club.
 3552  EP-AIH  To the Iran Civil Aviation Club.
 3553  EP-AII  To the Iran Civil Aviation Club.
 3554  EP-AIJ  To the Iran Civil Aviation Club.
 3555  EP-AIK  To the Iran Civil Aviation Club.
 3556  EP-AIL  To the Iran Civil Aviation Club.
 3557  EP-AIM  To the Iran Civil Aviation Club.
 3558  EP-AIN  To the Iran Civil Aviation Club.
 3559  EP-AIO  To the Iran Civil Aviation Club.
Total Production  27
J/5P Autocar
C/n Initial
Registration		 Notes
 23 aircraft built by Auster Aircraft Ltd, Rearsby. Built between 1954 and 1959.
 3155  VH-BYU  To Guinea Airways Ltd, Adelaide, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3161  G-ANXZ  Prototype. To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAJ, 9K-AAJ. To Kuwait Ait Force (See Military Table).
 3165  G-ANYE  To HE Sheikh Abdulla Al Mubarak Al Subah, Govt of Kuwait. To K-AAAK, 9K-AAK. To Kuwait Ait Force (See Military Table).
 3171  G-AOBV  To Basil Reginald Vincent Ziami de Ferranti, Manchester.
 3178  G-AOFM  To Hunting Aerosurveys Ltd, Elstree.
 3187  G-AODC  To Sidney John Joseph Blackburn, London. To OE-DAC.
 3191  EI-AJH  Originally allotted D-EFOR to Aviawest, Ludwigsburg, but cancelled, then G-AOHF to Auster Aircraft. Sold in November 1956 to Air Kruise (Ireland) Ltd,
 Killarney. To G-AOHF, VH-EDF.
 3192  VH-RES  To the Bureau of Mineral Resources, Geology and Geophysics, Melbourne. To VH-RUI.
 3193  ZK-BLZ  Initially registered to WS Shackleton as G-AOFT before sale to Mount Cook Aero Services Ltd, Timaru.
 3197  G-AOGM  To Hunting-Clan Air Transport Ltd, Croydon.
 3198  VH-KCB  To RH Hamblin, Hillston, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3200  VH-BTE  To LS Brown, White Cliffs, NSW.
 3251  VH-KCC  To Narrabri Air Taxis Pty Ltd, Narrabri, Tamworth, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW. Converted between 1979 and 1988 to
 J/5B
 3252  G-AOHZ  To North Perrot Estate Co Ltd, Crewkerne. On rebuild (2020) to J/5V in Pilsey, Derbyshire.
 3255  OE-BDC  To Aero-Transport Flugbetriebs GmbH, Vienna. To D-EKKO.
 3256  YI-ADB  To the Iraqi Aeroplane Society.
 3257  VH-BTG  To J Peter, White Cliffs, NSW.
 3258  G-AOCY  To Bristol Aero Engines Ltd, Filton.
 3259  VH-PBPE  To Bush Pilots Airways Ltd, Cairns, via Kingsford Smith Aviation Service, Bankstown, NSW. To VH-WCL.
 3265  VT-DIW  To the Director of Plant Protection, Govt of India, New Delhi.
 3271  G-ARLY  Shipped to Australia but returned. To Lionel Louis Murry, Bournmouth in October 1961.
 3274  G-APKI  To the Dunlop Rubber Co Ltd, Aviation Division, Coventry.
 3275  D-EJUX  To Metallwerk Gabler and Co GmbH, Peine. To OY-AVB, OH-AVB.
Total Production 23
J/5Q Alpine
C/n Initial
Registration		 Notes
 4 aircraft built by Auster Aircraft Ltd, Rearsby. Built in 1956/7.
 3201  ZK-BLW  Prototype. To Middle District Aero Club, Palmerston North. Fitted with Lycoming O-320 post 1992.
 3202  G-AOZL  To Joseph Vidal Heriz-Smith, Harrow Weald, Middlesex. To EC-ANK.
 3203  VH-UED  To the Nonning Pastoral Co, Nonning, Port Augusta, SA.
 3204  G-APBC  To Jack Heywood Ltd, Matlock, Derbyshire.
Total Production  4
J/5R Alpine
C/n Initial
Registration		 Notes
 7 aircraft built by Auster Aircraft Ltd, Rearsby. Built between 1956 and 1958.
 3301  VT-BTI  Prototype Initially registered to WS Shackleton as G-AOGN before sale to ER Dutschke, Fowlers Bay, SA. To VH-JSR, VH-AOG.
 3302  G-AOGV  To Neville Ashley Rogers, Bedford.
 3303  G-APAA  To the Automobile Association Ltd, London.
 3304  G-APCX  To Ronald Barnard Haigh, Thaxted, Essex. To VH-KBV.
 3305  VH-KCK  To JG Crossley, Booligal, NSW, via Kingsford Smith Aviation Service, Bankstown, NSW.
 3306  G-APVG  Regn ZK-BQW reserved but not delivered and converted to J/5L Aiglet Trainer. To Derrick Woodrow Wilson, Wolverhampton.
 3307  G-APFW  To Peter Goodhall Cox, Market Harborough.
Total Production  7
J/5T
C/n Initial
Registration		 Notes
 1 aircraft built by Auster Aircraft, Rearsby. First flew n April 1957.
 3421  G-25-4  Flown, but withdrawn from use after tests.
Total Production  1
J/5V Autocar
C/n Initial
Registration		 Notes
 1 aircraft built by Auster Aircraft, Rearsby in 1950.
 3273  G-APUW  Shipped to Australia (as J/5P?) but returned and stored. Completed as J/5V by Auster Aircraft in 1960. To Walter Tom Clarke, Liverpool.
Total Production 1
J/8F Aiglet Trainer
C/n Initial
Registration		 Notes
 1 aircraft built by Auster Aircraft, Rearsby in 1950.
 3152  G-ANVJ  Intended for the Yorkshire Aeroplane Club, Leeds, but not completed.
Total Production (Not Completed)  1
Auster J/5 Series - Aircraft Supplied To Military Air Arms (In alphabetical order of country)
Serial Range C/n Type Qty Notes
Arab Legion (Jordan)  2 aircraft supplied to the Arab Legion Air Force.
 A-408 - A-409  2767, 2771  J/5F Aiglet Trainer  2
Australia  2 aircraft supplied to the Royal Australian Navy in 1953.
 A11-300 - A11-301  3059, 3064  J/5G Cirrus Autocar  2
Kuwait  7 aircraft acquired by the Kuwait Air Force in 1960 (?).
   3113, 3120  J/5F Aiglet Trainer  2  Ex 9K-AAD, 'AE
   3075  J/5B Autocar  1  Ex 9K-AAF
   3132, 3133  J/5L Aiglet Trainer  2  Ex 9K-AAG, 'AH
   3161, 3165  J/5P Autocar  2  Ex 9K-AAJ, 'AK
New Zealand  6 aircraft supplied to the Royal New Zealand Air Force in September 1947.
 NZ1701 - NZ1706  2095-2096, 2801-2803  J/5  6  All aircraft supplied as airframes without engines.
Pakistan  17 aircraft supplied to the Royal Pakistan Air Force in 1952.
 W4100 - W4116  2726, 2727, 2724, 2738  J/5F Aiglet Trainer  17
   2739, 2742, 2741, 2740
   2728, 2725, 2760, 2761
   2762, 2763, 2764, 2799
   2800
Southern Rhodesia  4 aircraft supplied to the Southern Rhodesia Air Force in 1949.
 SR-53 - SR-56  2879, 2878, 2880, 2881  J/5  4
United Kingdom  1 aircraft acquired for spraying tests by the Colonial Insecticides Research Unit for use in Malaya.
 XJ941  3153  J/5G Cirrus Autocar  1  Ex G-ANVN.
Total 37

Production Summary

All Aircraft By Type
Type Built New Conv Canc'd Total
 J/5 (Autocrat/Adventurer) 59 1 60
 J/5A 1 1
 J/5B Autocar 83 (1) 84
 J/5E Autocar 1 1
 J/5F Aiglet Trainer 91 91
 J/5G Cirrus Autocar 93 (2) 95
 J/5H (1) 1
 J/5K Aiglet Trainer 1 (1) 2
 J/5L Aiglet Trainer 27 (4) 31
 J/5P Autocar 23 (2) 25
 J/5Q Alpine 4 4
 J/5R Alpine 7 (3) 10
 J/5T 1 1
 J/5V 1 (2) 3

 J/8F Aiglet Trainer 1 1
 J/8L Aiglet Trainer (1) 1
392 (17) 2
Summary - J/5 Family - All Aircraft By Sub Type, Built New
(Excludes Experimental J/5T and J/5V)
Type Total
 J/5 and Adventurer 60
 Autocar/Cirrus Autocar 200
 Aiglet Trainer 119
 Alpine 11
390

Notes

  1. C/n 2733, VH-BYE overturned on landing on 10 March 1969 and its registration was cancelled 26 August 1969. C/n 2735, VH-SAE (originally VH-BYF), was withdrawn from use 18 May 1964 and it went through several hands during rebuild, finally making its first post restoration flight in September 2009. It features the fuselage of the VH-BYE and the wings of VH-SAE, retains the c/n (2733) of VH-BYE, but the original registration of c/n 2735, VH-BYF!
  2. C/n 3136, VH-BYW, has been incorrectly identified as a J/5P, including within the Australian DCA/CASA records! It was originally built as a J/5L Aiglet Trainer but was converted to J/5R configuration in 1966 when 36' ex Autocar wings were fitted to the original Aiglet Trainer fuselage.

Production References

  1. Auster - The Company and the Aircraft, Tom Wenham, Rod Simpson, Malcolm Filmore (Air Britain Publishing, 2018)
  2. Auster Production Histories, Malcolm Filmore (Air Britain Publishing, 2020)
  3. British Civil Aircraft Since 1919 Vol 1, A.J. Jackson (Putnam, 1973)
  4. Austers - 'Nearly All You Want To Know', Mike Preston and Mick Ames (International Club Heritage Group, 2002 - available to download from the Auster Heritage Group)
  5. Additional J/5, J/5A, Aiglet Trainer and Alpine details via e-mail from Ian O'Niell/David Sargent (Air Britain AB-IX Forum, 1 and 17 March 2021).
  6. Kingdford Smith Bushmaster - The Encyclopedia of Aircraft David C. Eyre.
  7. Auster J-5-190 Ag-Special - The Encyclopedia of Aircraft David C. Eyre.
  8. J/5G/A1 at https://www.airhistory.net/photo/669/VH-TTH

Page Revision History

Revised at Version 2.0.0
  • Page completely rewritten based on [1] and [2].
Revised at Version 1.2.0
  • Additional details for J/5A c/n 2093.
  • Additional details for J/5B converted from J/5P.
  • Additional details for J/5GL.
